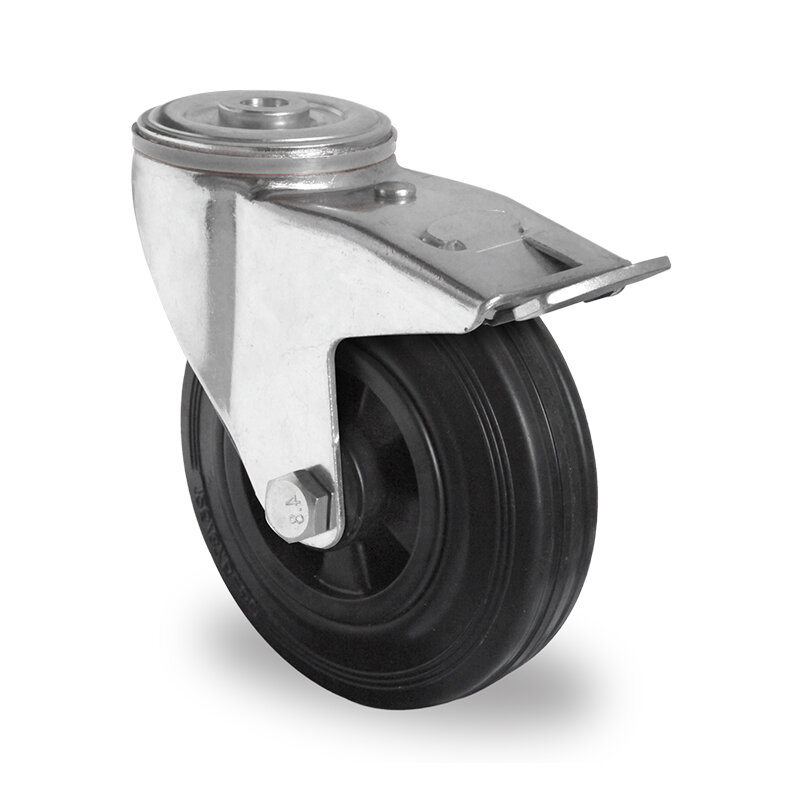

swivel castor with bolt hole and total brake, ø 125 mm

system number: BBH85WC125P4S4R0N
  • galvanized sheet steel housing, pivot bearing with a double ball race, bolt hole fitting by bolt hole Ø 13 mm, housing with material strength 2.5 mm (fitting) and 2.5 mm (fork), clearance between the fork 52 mm, wheel rim made of polypropylene with a tread made of solid rubber (REACH-conform) black colored, hub width 50 mm, roller bearing, screwed wheel axle (incl. all axle material).
can be used on a variety of floors
resistant to light acids
quietly
low roll resistance
temperature range from -20C° to +60C°

Technical specifications

payload
100 Kg
wheel diameter
125 mm
fastening
hole fitting 13 mm
total height
154 mm
Wheel width
38 mm
bearing surface
solid black rubber 85° Shore A
Wheel center
polypropylene black
hub width
50 mm
bearing
roller bearing
Axle screw
10 mm
