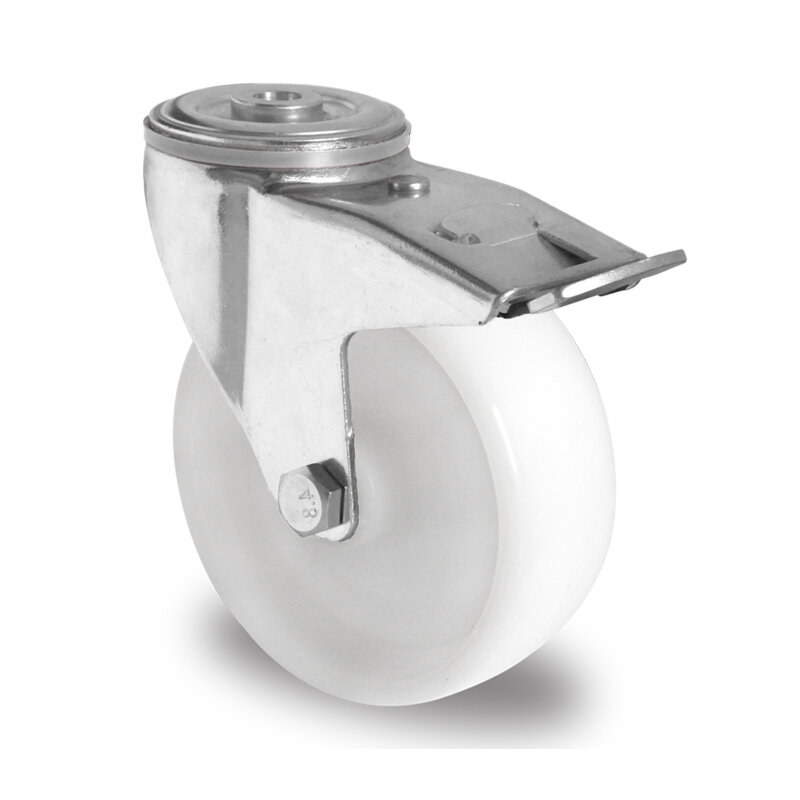

swivel castor with bolt hole and total brake, ø 100 mm

system number: BPH35WC100N0N0P0N

galvanized sheet steel housing, pivot bearing with a double ball race, bolt hole fitting by bolt hole Ø 13 mm, housing with material strength 2.5 mm (fitting) and 2.5 mm (fork), clearance between the fork 42 mm, wheel rim made of nylon with a tread made of nylon white colored, hub width 40 mm, plain bearing, screwed wheel axle (incl. all axle material).

gentle to the ground,traceless
low start resistance
low roll resistance
high load capacity
temperature range from -40C° to +80C°
