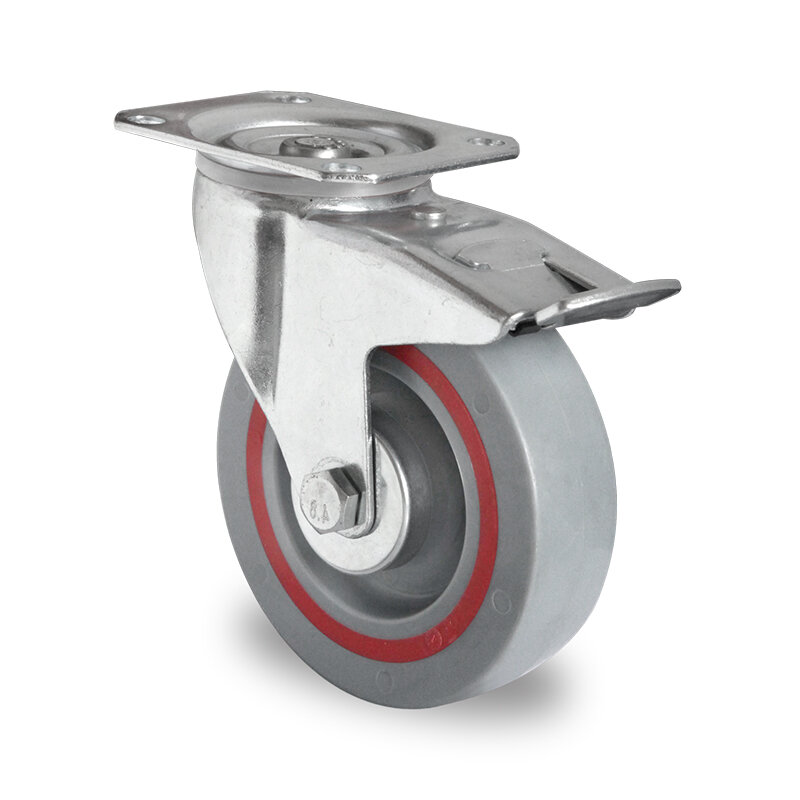

swivel castor, ø 100 mm with total brake

system number: TPP21WC100T6P2R1W
  • galvanized sheet steel housing, pivot bearing with a double ball race, screwing by plate with hole pattern 80/77 x 60 mm, housing with material strength 3.0 mm (fitting) and 2.5 mm (fork), clearance between the fork 42 mm, wheel rim made of a polypropylene core and inserted and dampening TPR ring with a tread made of polypropylene grey colored, hub width 40 mm, roller bearing, screwed wheel axle (incl. all axle material).
unbreakable,traceless
resistance to many chemicals
low roll resistance
versatile
temperature range from -20C° to +60C°

Technical specifications

payload
160 Kg
wheel diameter
100 mm
fastening
plate 105 x 80 mm
hole pattern
80/77 x 60 mm
total height
128 mm
Wheel width
36 mm
bearing surface
polypropylene grey
Wheel center
polypropylene with TPR Ring red
hub width
40 mm
bearing
roller bearing
Axle screw
8 mm
