rollcage with plastic base, type 720 x 810 mm, type 2-sided, with comfort system

system number: KB2A70041725CS09156
  • construction:
  • plastic base out of high impact resistant PP-material,
    gray similar RAL 7004
  • with castors ø 108 mm polyamide, 2 swivel / 2 fixed castors,
  • 2 side panels out of ø 22 mm surrounding tube,
  • surface: blue zinc

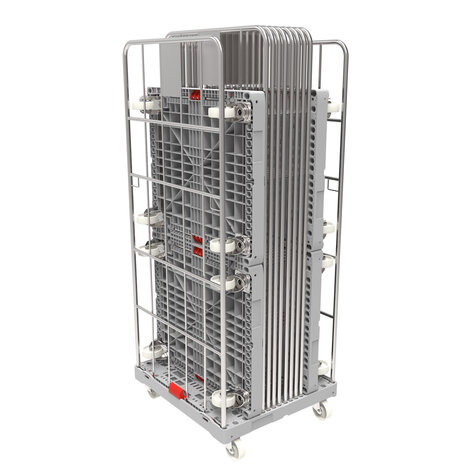

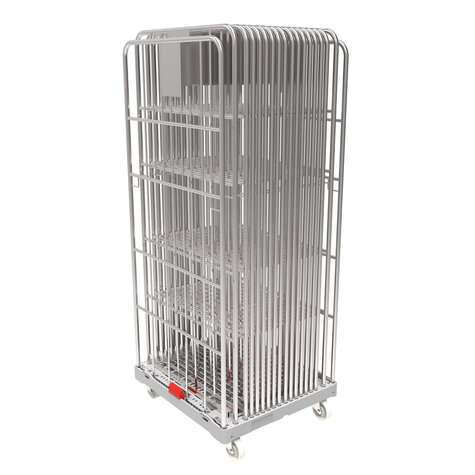

Our new roll container with comfort system is characterized by the innovative quick coupling system of the side panels and the easy handling. Due to the possibility of accommodating up to 16 side panels per plastic base and the integrated wheel trough stacking, a fast volume reduction
(76 %) is achieved.

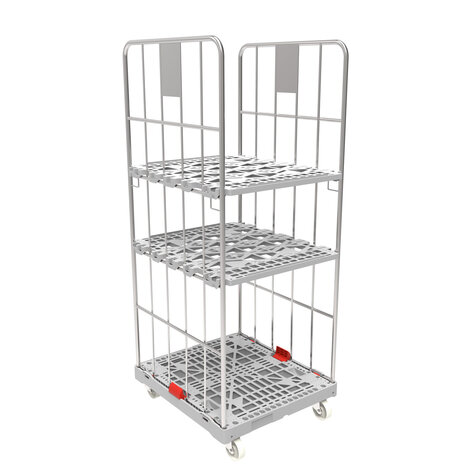

The insertable intermediate shelves not only allow flexible, horizontal subdivision of the roll container, but also conversion to a universal container. This greatly increases the area of application of our ESB roll container.
Accessories: plastic shelf part no. W70A02PPF57004

Technical specifications

payload:
500 kg
overall dimension:
ca. 720 x 810 x 1.840 mm
internal dimensions:
ca. 660 x 810 x 1.650 mm
