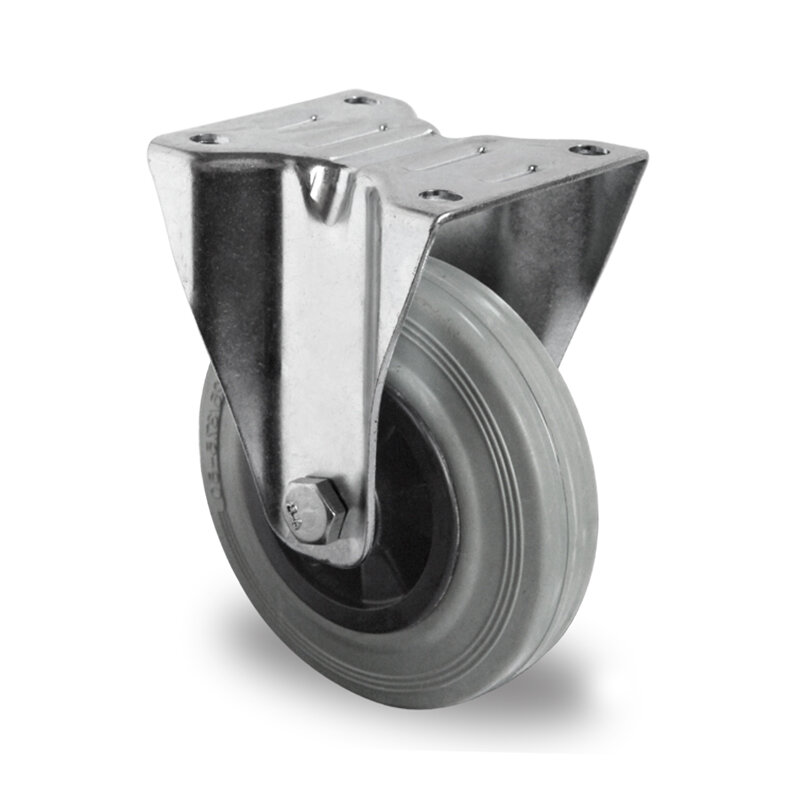

fixed castor, ø 80 mm

system number: FBP22WC080P4R2R0N
  • galvanized sheet steel housing, screwing by plate with hole pattern 80/77 x 60 mm, housing with material strength 2.0 mm (fitting) and 2.0 mm (fork), clearance between the fork 42 mm, wheel rim made of polypropylene with a tread made of solid rubber (PAH Cat.3) grey colored, hub width 40 mm, roller bearing, screwed wheel axle (incl. all axle material).
can be used on a variety of floors
resistant to light acids
quietly
low roll resistance
temperature range from -20C° to +60C°

Technical specifications

payload
70 Kg
wheel diameter
80 mm
fastening
plate 105 x 80 mm
hole pattern
80/77 x 60 mm
total height
105 mm
Wheel width
35 mm
bearing surface
solid grey rubber 85° Shore A
Wheel center
polypropylene black
hub width
40 mm
bearing
roller bearing
Axle screw
8 mm
