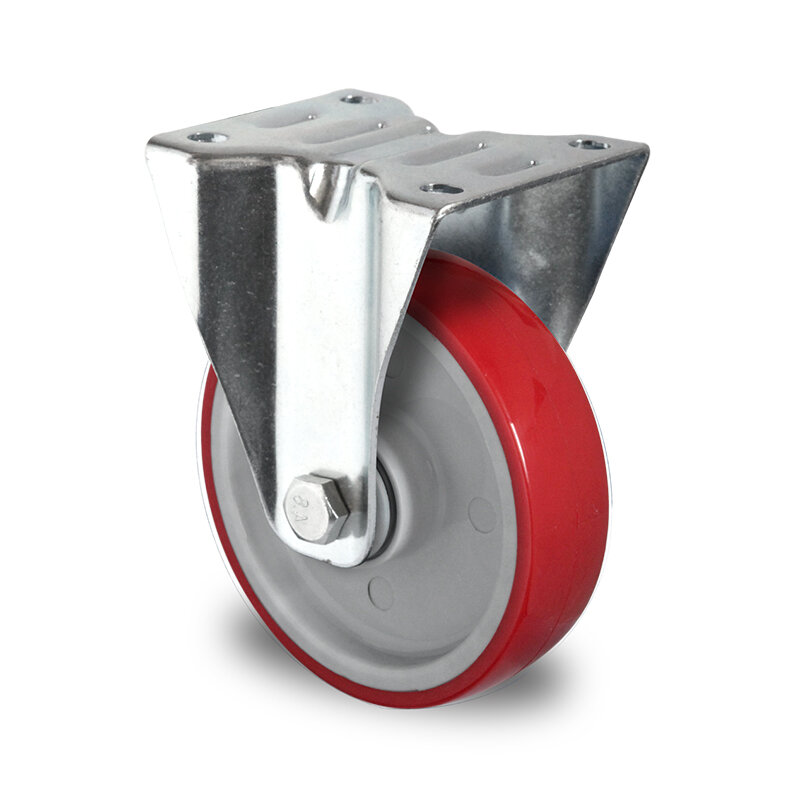

fixed castor, ø 125 mm

system number: FPP35WC125N2U6B32
  • galvanized sheet steel housing, screwing by plate with hole pattern 80/77 x 60 mm, housing with material strength 2.5 mm (fitting) and 2.5 mm (fork), clearance between the fork 52 mm, wheel rim made of nylon with a tread made of robust polyurethane red colored, hub width 50 mm, central ball bearing, screwed wheel axle (incl. all axle material).
gentle to the ground,traceless
resistance to many chemicals
quietly
high load capacity
temperature range from -40C° to +80C°

Technical specifications

payload
200 Kg
wheel diameter
125 mm
fastening
plate 105 x 80 mm
hole pattern
80/77 x 60 mm
total height
155 mm
Wheel width
32 mm
bearing surface
thermoplastic polyurethane 95° Shore A red
Wheel center
polyamide grey
hub width
50 mm
bearing
roller bearing
Axle screw
10 mm
