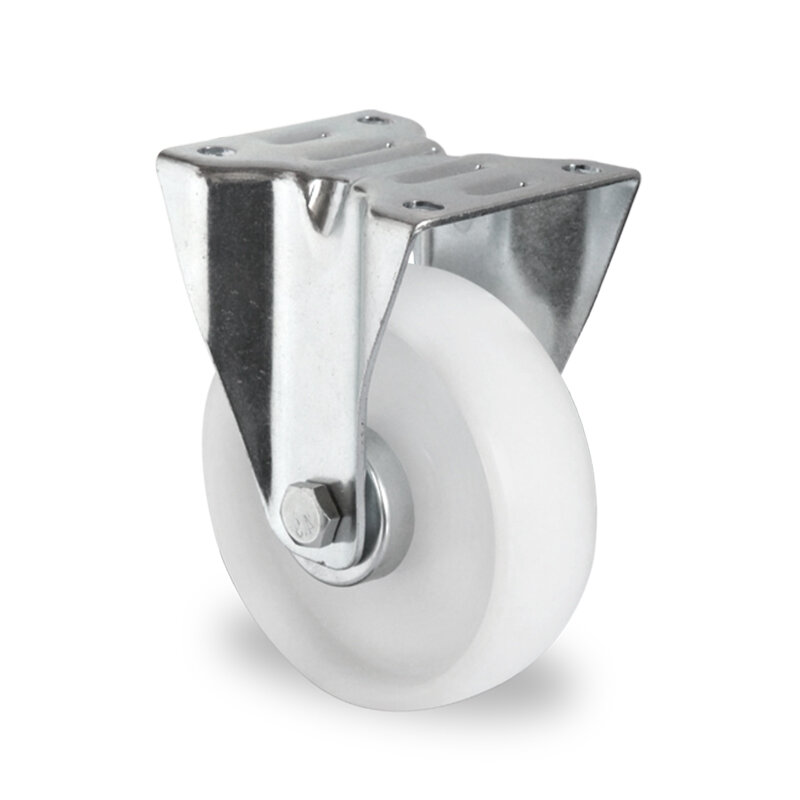

fixed castor, ø 100 mm

system number: FBP22WC100P0P0R1W
  • galvanized sheet steel housing, screwing by plate with hole pattern 80/77 x 60 mm, housing with material strength 2.0 mm (fitting) and 2.0 mm (fork), clearance between the fork 42 mm, wheel rim made of polypropylene with a tread made of polypropylene white colored, hub width 40 mm, roller bearing, screwed wheel axle (incl. all axle material).
gentle to the ground,traceless
low start resistance
low roll resistance
low-priced alternative
temperature range from -20C° to +60C°

Technical specifications

payload
100 Kg
wheel diameter
100 mm
fastening
plate 105 x 80 mm
hole pattern
80/77 x 60 mm
total height
125 mm
Wheel width
36 mm
bearing surface
polypropylene white
Wheel center
polypropylene white
hub width
40 mm
bearing
roller bearing
Axle screw
8 mm
